Carburator & Intake
Low speed needle for Schebler DLX carburetors with adjustable head.
Fits the earlier DLX carbs like model A and C.
new reproduction
475 SEK
Adjusting Screw for Cam track Schebler HX.
Fits Schebler HX carburetors.
New reproduction.
Location: B10
250 SEK
Air Valve Spring Nut HX NOS
Harley OEM: 1143-11
Location: NOS-låda
225 SEK
Lower Bowl Gasket Schebler HX Small Body
ID= 14 mm
OD=18 mm
Sold Each
Location: B10
19 SEK
SCHEBLER HX, BOWL NUT 9/16-24 THREADS.
NOS
Harley OEM: 1203-11
Location: NOS-låda
337.50 SEK
Carburetor Body Parts for Schebler DLX & Linkert 1924-up
Location: B161
0 SEK
Choke Lever Lock Screw Schebler DLX & Linkert 1924-65
Only fits models that has choke lever with lock screw.
OEM ref no: 1234-24
Location: B8
100 SEK
New
Choke Parts for Schebler DLX & Linkert 1924-up
Location: B8, B161, B165
0 SEK
Copper-nickel Tube 3/8" (m)
90% copper & 10% nickel.
Sold per meter
Location: SD4C
450 SEK
Float lever pivot pin kit Schebler, DLX & Linkert
Note that the head of the screws can be too big diameter for early Schebler float bowls so for some bowls…
206.25 SEK
Float Needle Nut HX & DLX NOS
Harley OEM: 1199-16
Location: NOS-låda
187.50 SEK
Fuel line Nipple all Brands with 1/4" line
Indian Ref no. B21710
Sold Each
Location: B60
83.50 SEK
Gas line Nut at Bowl, all Linkert & Schebler.
Indian Ref no. H20150
HD OEM Ref: 3612-09
TPI 27
Sold Each
Location: SC3C
125 SEK
High speed needle for Schebler DLX carburetors type A and C, as for example DLX 60 DLX 63.
Needle length below head : 65,5 mm
Diameter needle : 3,1 mm
new reproduction
Location: B78
1,330 SEK
High Speed Needle Parts for Schebler DLX & Linkert 1924-up.
Needle length below head :
27297-27 = 69 mm
27297-30 = 65 mm
27297-40 = 70 mm
27300-50 = 70 mm
Location: B78
0 SEK
Hot air connection fits all early motorcycles with Schebler H type carburetor.
Only fits H type carbs with 31/32" venturi and 1-1/8" venturi (does not fit the biggest H type with…
1,050 SEK
Hot air connection fits all early motorcycles with Schebler H type carburetor.
Only fits H type carbs with 31/32" venturi and 1-1/8" venturi (does not fit the biggest H type with…
1,050 SEK
Lifter Lever Roller & Screw kit, Schebler HX 1909-up.
OEM Ref: SC64, SC75
Location: B10
415 SEK
Low speed needle for Schebler DLX carburetors type A and C, as for example DLX 60 DLX 63.
Needle length below head : 63,4 mm
Diameter needle : 3,1 mm
new reproduction
Location: B78
1,330 SEK
Low Speed Needle Parts for Schebler DLX & Linkert 1927-up
27340-33 Fits 1" Carbs 1933-47
27337-27 Fits Schebler 1927-Up & Linkert 1948-65
VT35-9056 Fits Schebler 1927-Up & Linkert …
0 SEK
MOUNTING SCREWS SCHEBLER , FITS SCHEBLER CARBS.
1/4-24
5/16-18
Set of 3
Location: Colony7
201.88 SEK
Nipple for 3/16" Gas & Oil line .
Indian Ref no. A20160
Sold Each
Location: SC4H
68 SEK
Floats for Schebler & Linkert in Cork or Nitrophyl
Approx. measurements:
1193-09NIT= OD: 49,6mm ID: 31,10mm H:14,6mm
1271-24NIT= OD: 57,8mm ID: 39,20mm H:12,8mm (eccentric)
VT35-0745= OD: 60,2mm ID: 41,20mm H: 14,3mm
1193-09 (Cork)= OD: 47,8mm…
0 SEK

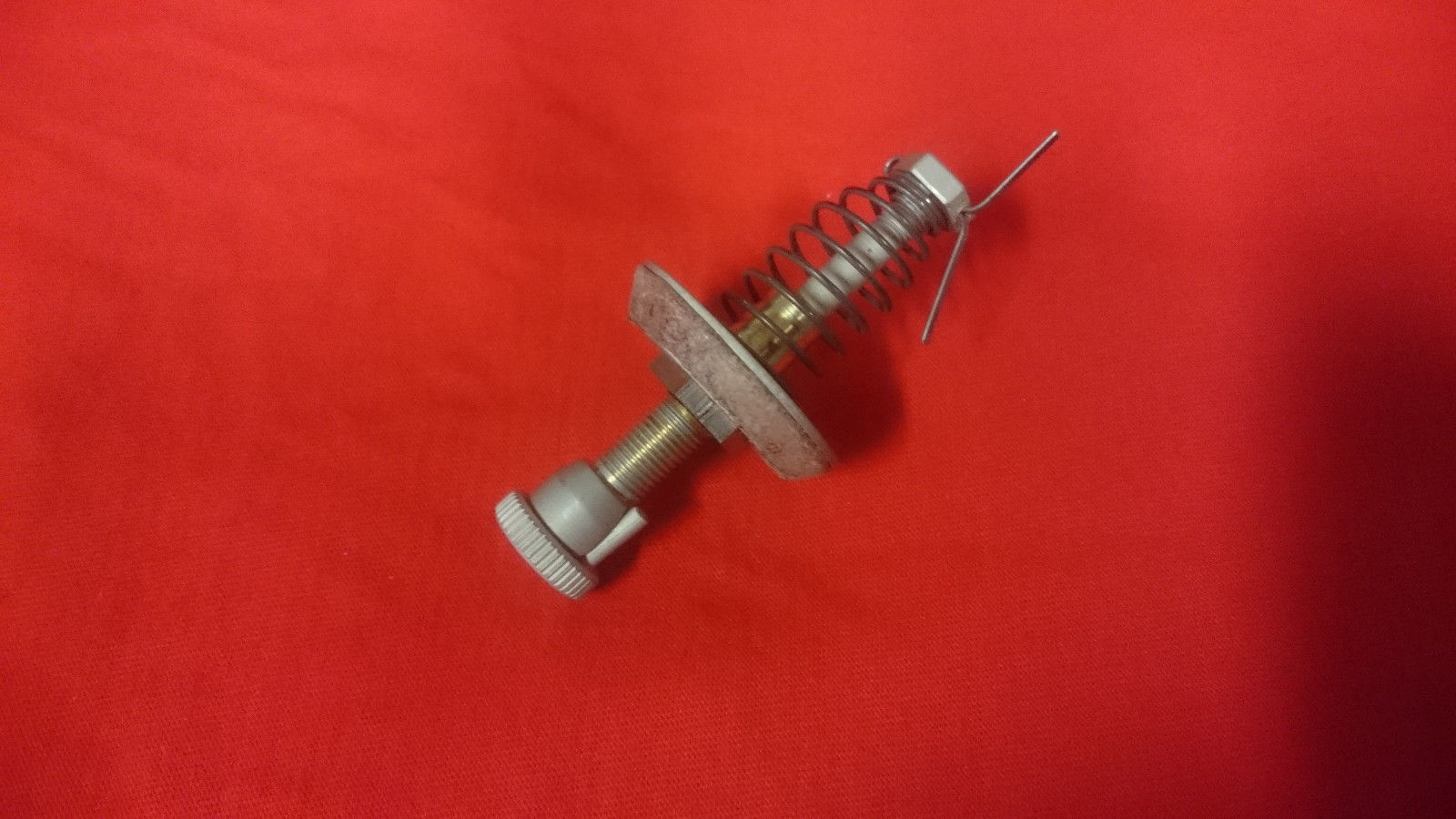

Schebler Air Valve rebuild kit, fits HX160 etc bodys. Dull nickel plating.
Diameter of leather valve approx. 31mm
New reproduction.
Location: SB2D
2,100 SEK
Schebler Carburetor Service Manual,
Instruction and service manual for Schebler carburetors,
covers Schebler H, DLX, G and AM carburetors
Copy, 44 pages
Location: SA2B
341.32 SEK
Schebler float needle.
Fits all Schebler carburetors.
New reproduction.
Location: B10
225 SEK
Schebler HX Low Speed Adjusting Screw
No plating
Location: B10
240 SEK
Mixture needles for Schebler carburator, fits all Schebler carburators 1909-up.
Measured from the tip of needle to where the ball starts.
Location: B10
275 SEK
Complete spring kit fits Schebler carburators 1", 3/4" and 1 1/8".
Location: B10
587.50 SEK
Throttle parts Schebler DLX & Linkert 1924-up
27275-24 Total length: 78,40mm (3.086")
27275-26 Total length: 69,30mm (2.728")
VT35-9152 Total length: 89,00mm (3.503")
Location: B8, B161, B165
0 SEK
Throttle door for Schebler HX 1 1/8"" model , Fits all HX with 1 1/8" intake opening. Harley J model 1915-25, Indian Powerplus 1916-19, Excelsior 1915-24 etc.
HD OEM Ref:…
312.50 SEK
Throttle lever casting for Schebler carburators.
Fits all 3/4" Schebler carburators. Harley, Indian, Excelsior. (OFFSET).
Location: B10
0 SEK
Throttle shaft kit Schebler HX 1 1/8" model , Oversize shaft. Fits all HX with 1 1/8" intake opening. Harley J model 1915-25, Indian…
1,480 SEK
Valve Seat Schebler GX models.
Fits Schebler HX carburetors.
New reproduction.
Location: B120
375 SEK
