Schebler & Linkert Carburator Floats 1909-up

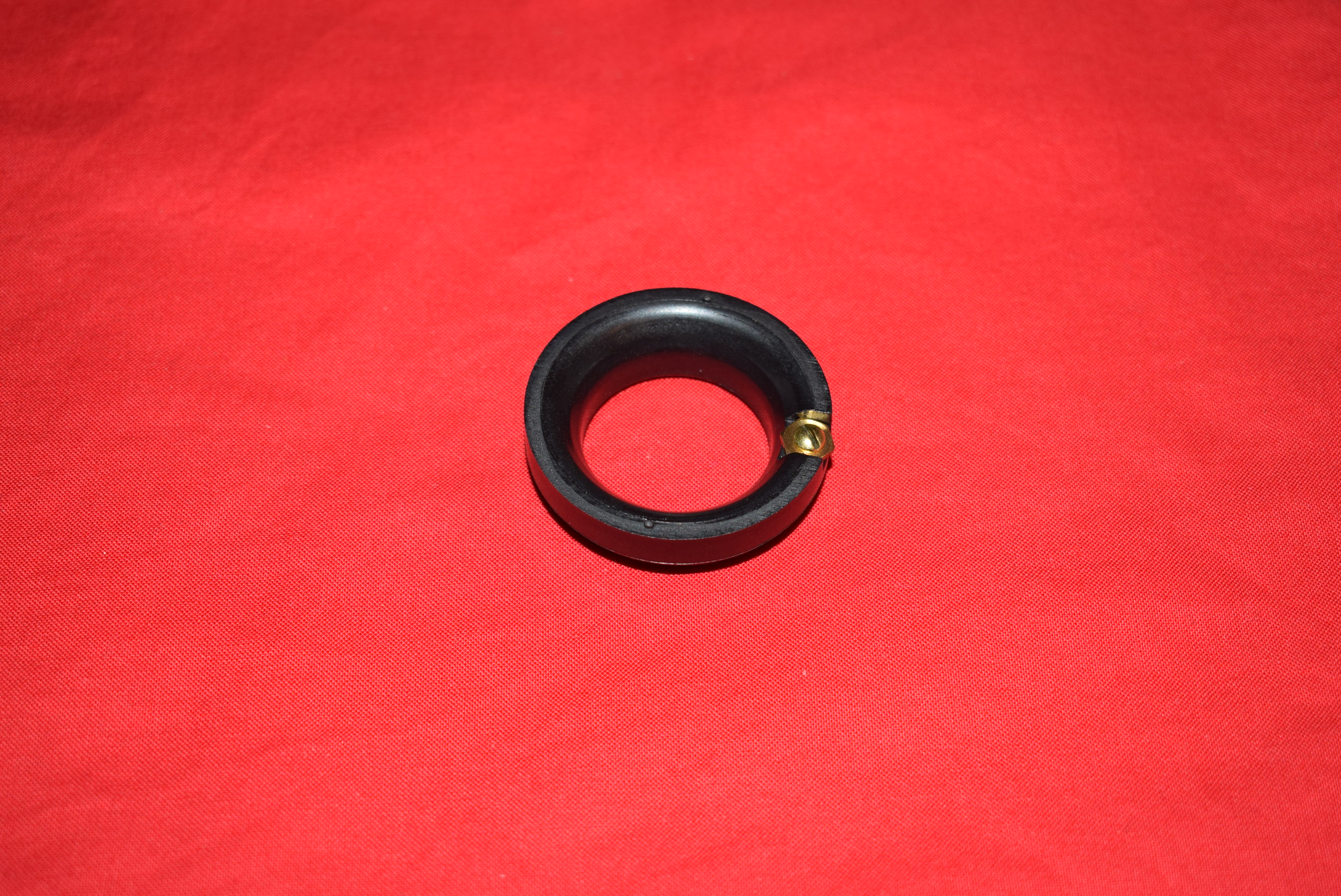

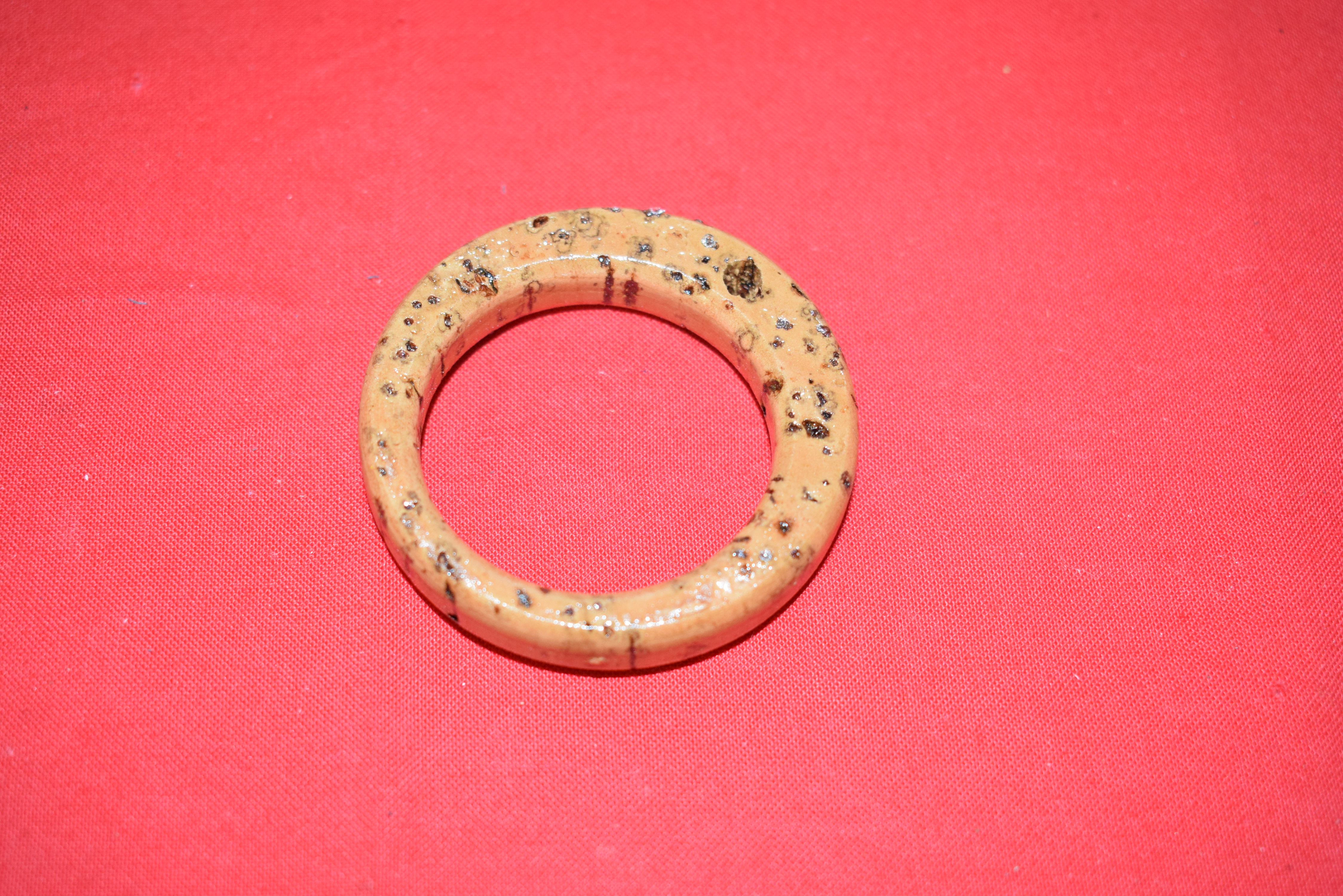

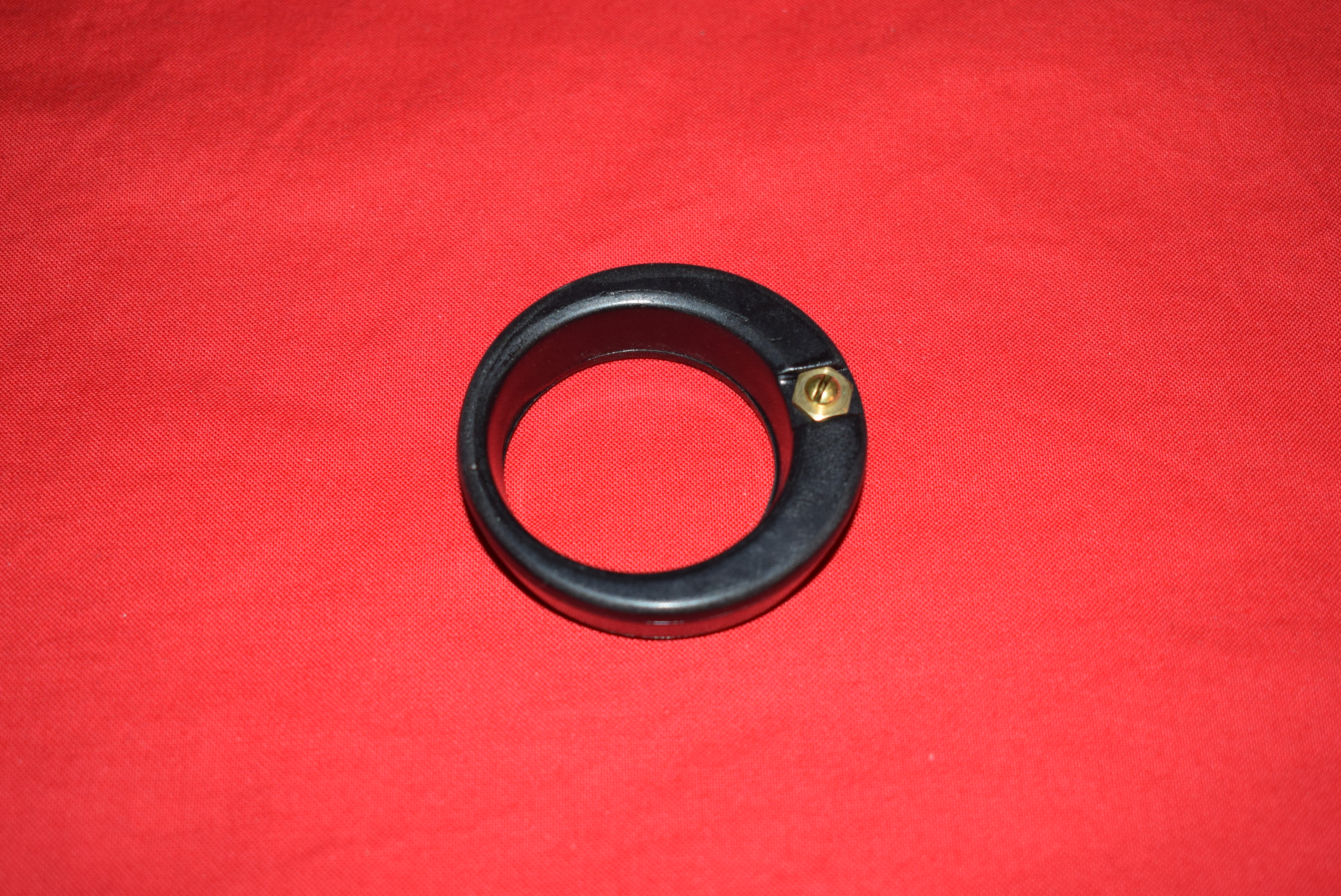

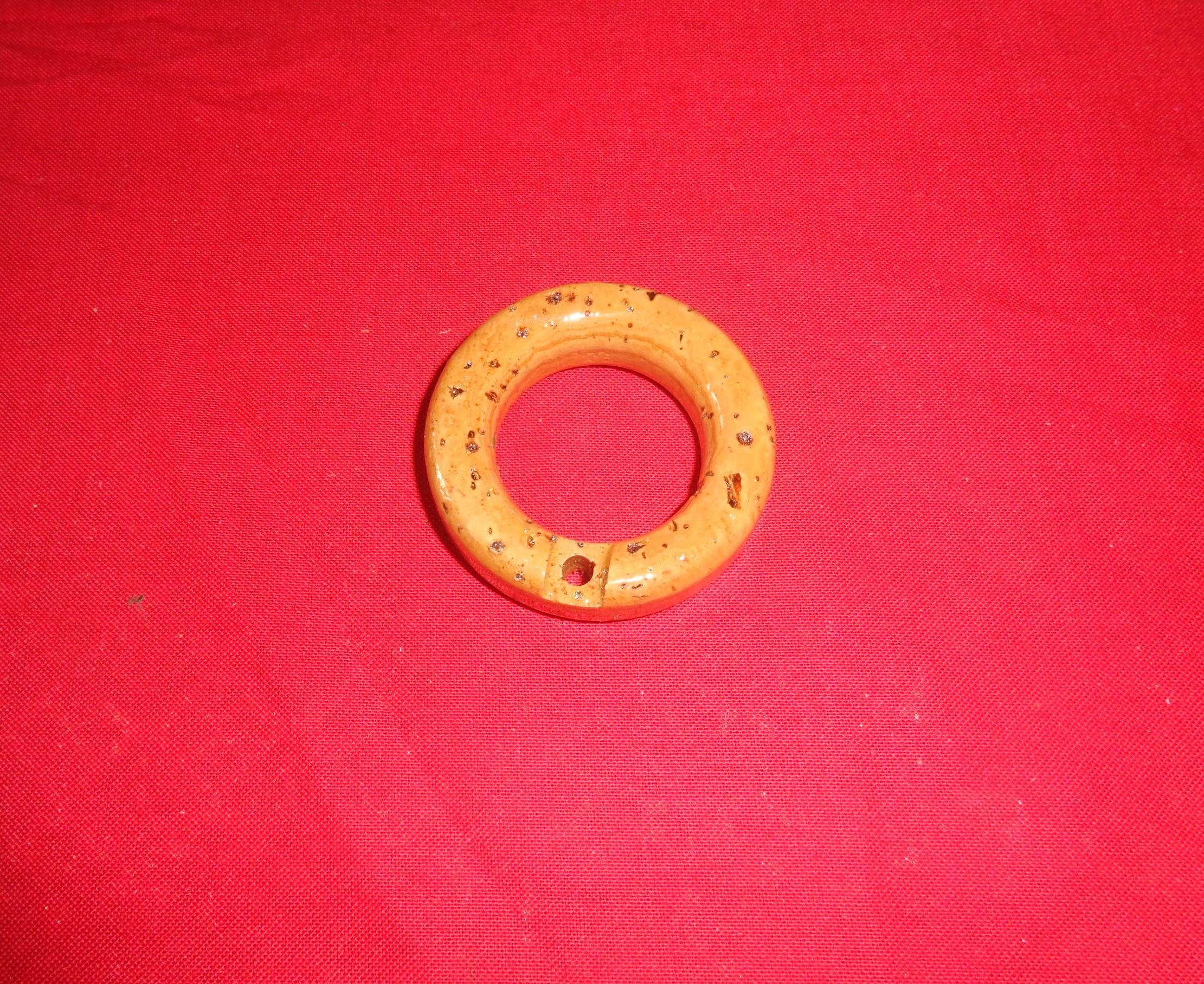

Floats for Schebler & Linkert in Cork or Nitrophyl Approx. measurements: 1193-09NIT= OD: 49,6mm ID: 31,10mm H:14,6mm 1271-24NIT= OD: 57,8mm ID: 39,20mm H:12,8mm (eccentric) VT35-0745= OD: 60,2mm ID: 41,20mm H: 14,3mm 1193-09 (Cork)= OD: 47,8mm ID: 28,2mm H: 12,2mm 1271-24 (Cork)= OD: 57,3mm ID: 40,2mm H: 11,2mm (eccentric) Note: DLX N float OD is approx. 57,8mm, original float bowls are often around 57,3mm in the opening but the floats are somewhat elastic so they can be pushed through. Location: SB1B and B9
